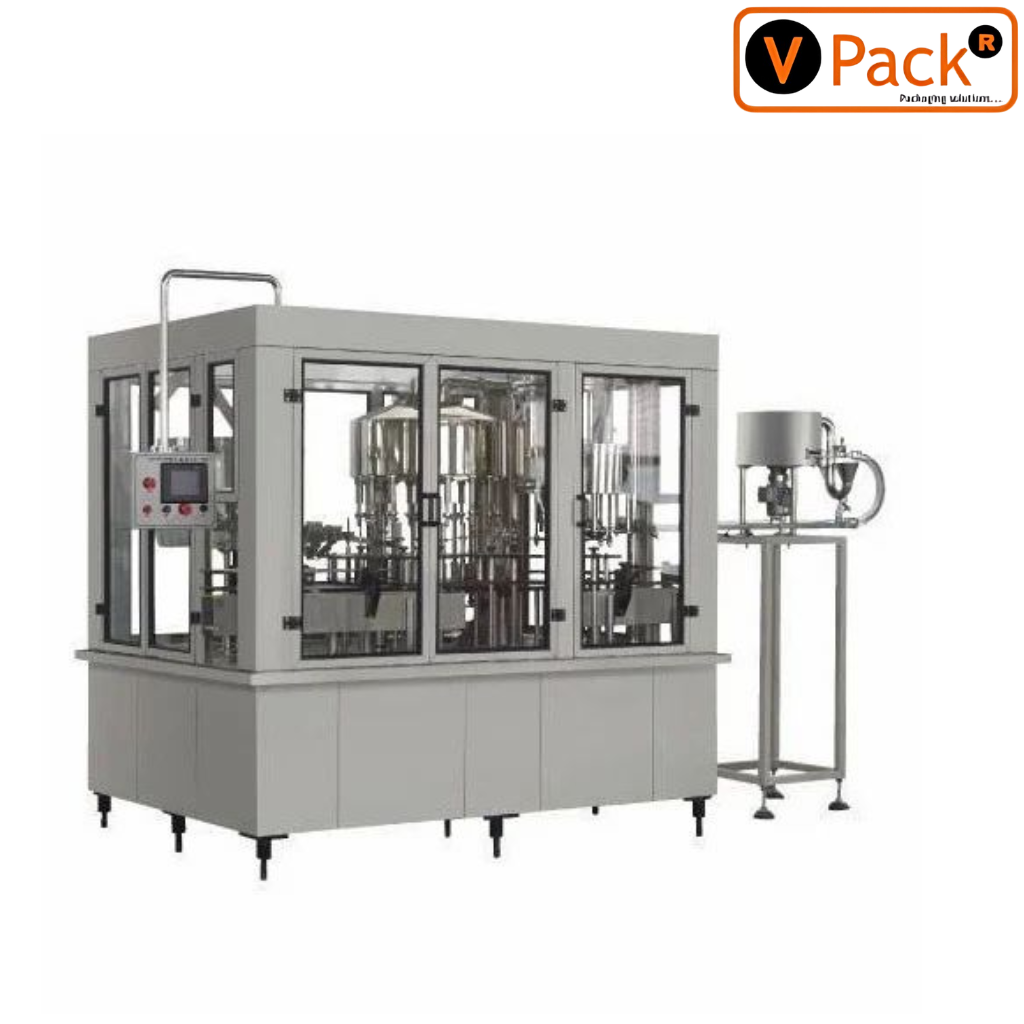

🧃 BOTTLE RFC MACHINE 30 BPM

✅ High-Speed, Fully Automated Non-Carbonated Bottling

Engineered for medium-scale production, this machine features 6 rinsing heads, 6 filling heads, and 3 capping heads, all driven by premium Rotomotive/Crompton motors. With intelligent photoelectric sensors (Omron/Sick), an optional Delta/INVT PLC control panel, and a robust 3 mm SS construction, it processes 30 bottles per minute at just ≈5 kW of power and 6–8 bar air pressure.

Call Now

✅ Compact 3-in-1 Rinse–Fill–Cap Solution

Description

VPACK’s 30 BPM Bottle RFC Machine delivers automatic rinsing, filling, and capping in one space-saving unit. Crafted from SS 304/316, it handles bottles from 200 ml to 2 L at ±1% accuracy, making it ideal for clean, efficient water and juice packaging with minimal footprint.

⚙️ Technical Specifications

  • Capacity: 30 Bottles Per Minute (BPM)

  • Material Used: SS 304 / SS 316

  • Filling Heads: 6

  • Rinsing Heads: 6

  • Capping Heads: 3

  • Power Consumption: Approx. 5 kW

  • Air Consumption: 6-8 bar

  • Bottle Size Range: 200 ml to 2 liters

  • Nozzles: 8 Rinsing, 8 Filling, 4 Capping

  • Electrical Components: Delta, INVT, Crompton

  • Thickness of Stainless Steel: 3 mm

  • Control Panel: Optional with 10% extra of original cost (Make: Delta / INVT)

  • Voltage: 3-phase, 440V, 50 Hz

  • Filling Accuracy: ±1%

  • Conveyor System: Automatic

  • Sensor Type: Photoelectric (Omron / Sick)

  • Emergency Stop: Yes

  • Water Consumption (Rinsing): 500–700 liters per hour

  • Water Consumption (Filling): 1800 liters per hour

  • Motors Used: Rotomotive, Crompton, Ultravario

  • Motor Capacity: 1 HP for conveyor, 2 HP for main filling system

  • Dimensions: 8 ft (L) x 6 ft (W) x 7 ft (H)

  • Weight: Approx. 1200 kg

  • Customization Options: Available

  • Integration with Production Line: Yes

  • Warranty: 1 Year

  • Certification: ISO Certified

  • Delivery Time: 4 to 8 weeks from order

  • Operator Training: Provided

  • Spare Parts Availability: Yes

  • Lifespan: 10–15 years with maintenance

  • Installation and Commissioning: Provided

  • After-Sales Support: Available

  • Suitable for Carbonated Drinks: No – Only non-carbonated liquids

  • Products That Can Be Filled: Water, Juice, Non-carbonated beverages

  • Manpower Required: 1 Skilled Operator and 1 Helper

Get a quote

🏭 Ideal For

  • Water bottling plants

  • Juice and beverage manufacturers

  • Medium-scale production units

  • Non-carbonated liquid packaging lines

📞 Contact VPACK today for a tailored quote and demo!

Call Now

🛡️ Boost Your Production with Confidence

With decades of experience in packaging machinery, VPACK delivers high-quality, durable, and performance-oriented machines. Our after-sales support, warranty, and engineering expertise make us the trusted choice across industries.

FAQ

Find quick answers to the most common questions about our products and services.

Yes, we provide complete customization based on your requirements — from size and capacity to specific materials, fittings, and features. Our engineering team works closely with clients to deliver tailored solutions.

We primarily use high-grade SS 304 or SS 316 stainless steel, depending on the application. All materials are food-grade and corrosion-resistant to ensure durability and safety.

Absolutely! Vpack offers installation guidance, operational training, and after-sales support to ensure your equipment runs smoothly from day one.

Delivery timelines vary depending on customization and order quantity. Standard models are usually delivered within 3 to 4 weeks. We’ll provide a clear delivery schedule at the time of order confirmation.

Yes. All our products are backed by a standard 12-month warranty against manufacturing defects. Extended warranty and Annual Maintenance Contracts (AMC) are also available upon request.

We serve a wide range of industries including food & beverage, pharmaceutical, cosmetic, chemical, and confectionery sectors. Our machines are designed to meet both domestic and international compliance standards.

Definitely! We welcome factory visits. It’s a great opportunity to see our manufacturing process, quality checks, and meet the team. Please contact us to schedule a visit.

Yes, we export our products worldwide. We ensure secure packaging and provide all necessary export documentation and support for hassle-free shipping.

Yes, our team is just a call or email away. We provide lifetime technical support for all our products and are committed to keeping your operations running smoothly.

Simply visit our Contact Page, fill out the form, or call us directly. We’ll respond promptly with pricing, availability, and further guidance.
